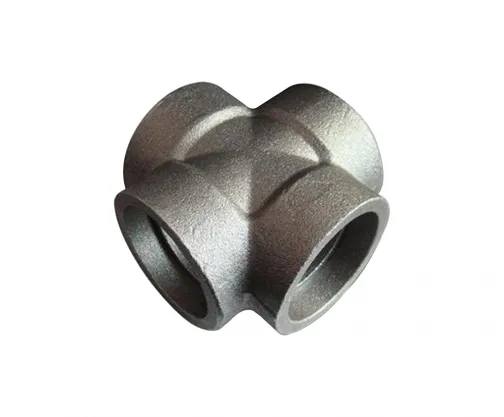

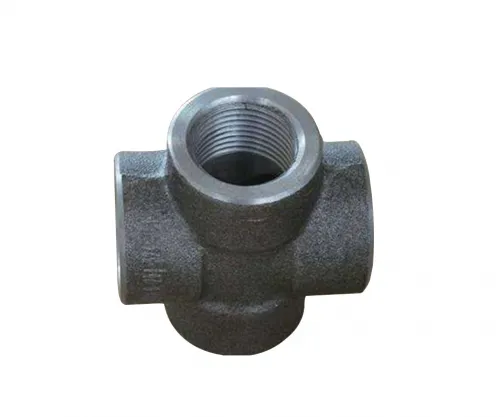

Socket Welding Cross

Socket welding cross is a kind of pipe fitting, which combines the characteristics of socket connection and welding. This kind of pipe fitting usually consists of a spigot, a socket, a bent part and a socket slot, etc.

It is characterized in that there is a socket slot on the spigot, and the spigot and the socket are respectively located at the two ends of the bent part.

Material

‌The materials of socket welding cross include stainless steel, carbon steel, non-ferrous metals and plastics.

Dimensions

The size range of socket weld cross is 1/8″~4″ (DN6~DN100).

Description

Socket welding cross is a pipe fitting that combines the characteristics of socket connection and welding. This pipe fitting is usually composed of a spigot, a socket, a bent part and a socket slot, etc., characterized in that there is a socket slot on the spigot, and the spigot and the socket are respectively located at both ends of the bent part. Socket welding cross joints are usually used to change the direction of the pipeline and are an important part of the pipeline system. In addition, the socket welding cross joint can be applied to different materials and industrial standards, and has the advantages of simple structure, beautiful shape, quick disassembly and assembly, flexible operation, low fluid resistance, and safe and reliable use. These characteristics make the socket welding cross widely used in industrial fields such as dairy, food, beer, beverage, pharmaceutical, and cosmetics.

Material

‌The materials of socket weld cross include ASTM A105, A350 LF2, A182 F304, F304L, F316, F316L, F321, F316TI, F51, F11, F22, F91.

Specifications and Dimensions

Socket welding crosses have a wide range of sizes, from 1/8″ to 4″ (DN6~DN100). ‌

The sizes of socket welding crosses cover a variety of options from small to large, including but not limited to:

Size range: 1/8″~4″ (DN6~DN100)

Pressure level: including 3000LB (SCH80/XS), 6000LB (SCH160), 9000LB (XXS) and other different levels, suitable for different working pressure requirements.

Usage Instructions

The usage of socket welded cross mainly involves the following aspects:

1. Applicable medium and temperature: Socket welded cross is suitable for non-corrosive or corrosive media, such as oil, water, gas, etc. Its applicable temperature range is determined by the medium used and the selected gasket, generally not exceeding 450℃1.

2. Manufacturing materials: The manufacturing materials of socket welded cross include 20#, 35#, 1Crl8Ni9Ti, 0Crl8Ni-12M02Ti, 316L, etc. These materials have good corrosion resistance and mechanical properties1.

3. Piping requirements: The piping requirements of socket welded cross include matching of pipe diameter and pressure level, as well as correct installation and fixation to ensure its normal operation and safety1.

4. Connection method: The connection method of socket welded cross is usually manual welding by tungsten inert gas arc welding (TIG), which can provide higher sealing and structural strength.

Technical Data Sheet

Socket welding cross
Common name for menstruation	Approximate Weight			Approximate volume
DN	SCH80/3000	SCH160/6000	XXS/9000	SCH80/3000	SCH160/6000	XXS/9000
6	0.15	0.21		0.038	0.047
8	0.15	0.25		0.047	0.049
10	0.19	0.54		0.049	0.14
15	0.39	0.64	1.32	0.14	0.252	0.375
20	0.47	1.09	2.25	0.252	0.375	0.565
25	0.76	1.97	2.69	0.375	0.565	0.73
32	1.19	2.34	4.38	565	0.73	1.295
40	1.64	3.9	4.84	0.73	1.295	1.852
50	2.59	4.25	10.5	1.295	1.852	2.75
65	4.75	8.58		1.852	2.74
80	7.25	12.6		2.985	4.56
100	16.5			4.785
