Dec. 23, 2024

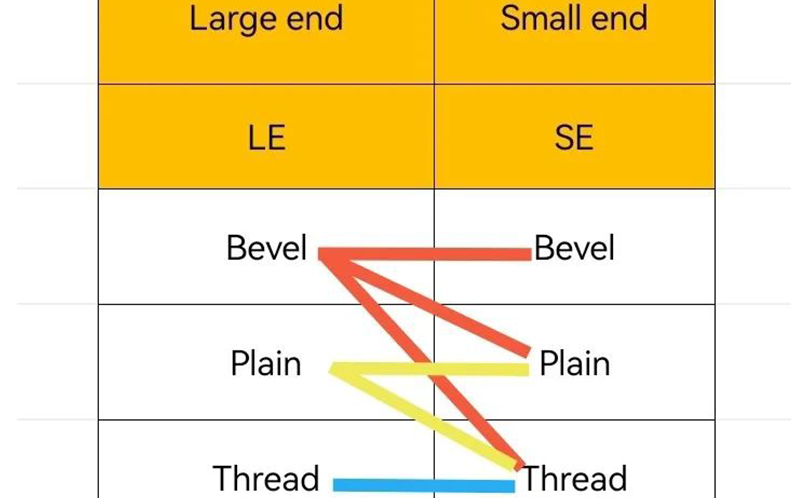

Combination of reducing pipe ends
Branch pipe seat (platform)
A pipe joint welded at the branch of the main pipe to play a reinforcing role.
Threaded branch pipe seat (platform) A branch pipe seat (platform) connected to the branch pipe by thread
Butt branch pipe seat (platform) A branch pipe seat (platform) connected to the branch pipe by butt welding
Socket welded branch pipe seat (platform) A branch pipe seat (platform) connected to the branch pipe by socket welding
Elbow branch pipe seat (platform) A branch pipe seat (platform) welded on the elbow
Miter branch pipe seat (platform) A branch pipe seat (platform) that is disconnected from the main pipe at 45°
TOL threaded branch pipe seat threadolet
WOL welded branch pipe seat weldolet
SOL socket branch pipe seat sockolet
Elbow branch pipe seat elbolet
Miter branch pipe seat latrolet
Threaded plug (pipe plug) pipe cap
Threaded plug is used to plug the external threaded pipe fittings at the end of the pipe, including square head pipe plug, hexagonal pipe plug, etc.
Pipe cap is a cap-shaped pipe fitting welded or threaded to the end of the pipe.
CP Cap
PL Plug
HHP Hex Head Plug
RHP Round Head Plug
SHP Square Head Plug
Blind Plate
A round plate inserted between a pair of flanges to separate the pipes.
A hollow spacer with a gasket, generally used when not separating.
Blind Plate A spacer shaped like the figure 8, half of the figure 8 is a solid plate, used to separate pipes, and the other half is hollow, used when not separating.
BLK Blank
SB Spectacle blind (blank)
Connection Type
BW Butt welding
SW Socket welding

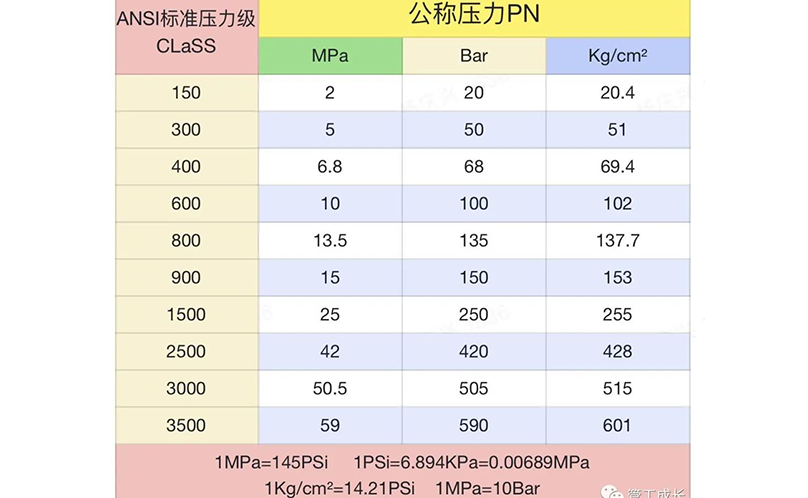

Pressure Level
CL Class
PN Nominal Pressure
Wall thickness grade
THK Thickness
SCH Schedule number
STD Standard
XS Extra strong
XXS Double extra strong
Pipe series standard
The American pipe series (ANSI B36.10 and ANSIB36.19) is a typical "large outer diameter series" with a nominal size range of DN6 to DN2000mm. There are two ways to indicate its wall thickness.
One is to use the pipe number "SCH" to indicate the wall thickness.
①The ANSI B36.10 standard includes ten grades: SCH10, SCH20, SCH30, SCH40, SCH60, SCH80, SCH100, SCH120, SCH140, and SCH160.
②The ANSI B36.19 standard includes four grades: SCH5s, SCH10s, SCH40s, and SCH80s.
The second method is to use the weight of the pipe to indicate the wall thickness of the pipe. It divides the wall thickness of the pipe into three types:
Standard weight pipe, indicated by STD;
Thickened pipe, indicated by XS;
Extra thick pipe, indicated by XXS.
