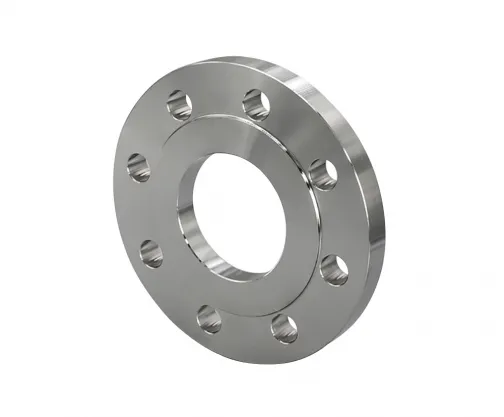

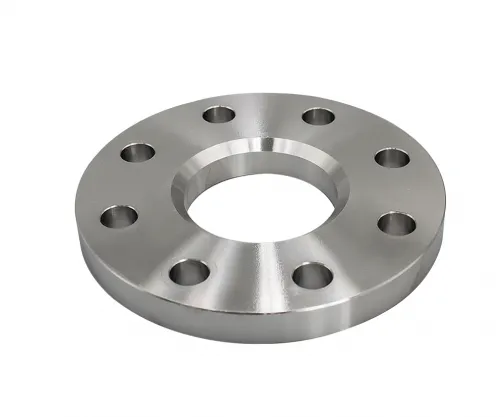

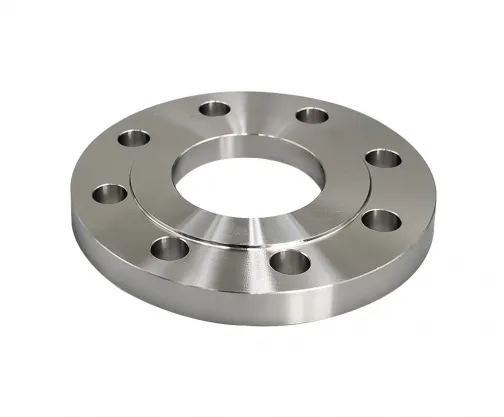

Plate type flat welding flange (chemical standard HG20592, national standard GB/T9119, mechanical standard JB/T81): convenient material acquisition, simple manufacturing, low cost, and wide use
But poor rigidity, so it should not be used in chemical process piping systems with supply and demand, flammable, explosive and high vacuum requirements, and highly and extremely hazardous occasions. The sealing surface types are flat and raised.
Material: 201, 304.316.316L.0Cr18Ni9.321.202, carbon steel, 20#, 20G, and alloy steel, etc.
Dimensions: The dimensions of plate type flat welding flanges vary according to different pressure levels and specifications.
Description
Plate type flat welding flange is the most common flange, with pressures of PN2.5, PN6, PN10, PN16, and PN25.
Welding form: Plate type flat welding flange is to insert the pipe into the flange for welding.
Material of flat welding flange: 201, 304.316.316L.0Cr18Ni9.321.202, carbon steel, 20#, 20G, and alloy steel, etc.
Material
The materials of plate-type flat welding flanges include forged steel, WCB carbon steel, stainless steel, 316L, 316, 304L, 304, 321, chrome-molybdenum steel, chrome-molybdenum-vanadium steel, molybdenum-titanium, rubber lining, and fluorine lining. The selection of these materials is based on different application requirements, including but not limited to industrial furnaces, thermal engineering, water supply and drainage, heating and ventilation, and automatic control.
Usage Instructions
Because plate flat welding flange has good comprehensive performance, it is widely used in chemical industry, construction, water supply, drainage, petroleum, light and heavy industry, refrigeration, sanitation, plumbing, fire protection, electric power, aerospace, shipbuilding and other basic projects.
Technical Data Sheet
Material: Common materials for plate-type flat-weld flanges include carbon steel, stainless steel and alloy steel. Carbon steel materials include ASTM A105, 20#, Q235, 16Mn, ASTM A350 LF1, LF2 CL1/CL2, ASTM A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, etc. Stainless steel materials include ASTM A182 F304, 304L, F316, 316L, 1Cr18Ni9Ti, 0Cr18Ni9Ti, 321, 18-8, etc. Alloy steel materials include ASTM A182 F1, F***, F9, F11, F12, F22, F91, etc.
Size range: Plate slip-on flanges have a wide range of sizes, with flange outer diameters ranging from 75mm to 2190mm, flange inner diameters from A18mm to 2036mm, and B15mm to 2024mm. Pipe outer diameters from A17.2mm to 2032mm, and B14mm to 2020mm. Bolt hole center distances range from 50mm to 2130mm, and bolt hole diameters from 11mm to 30mm. Flange thickness ranges from 12mm to 58mm.
Pressure rating: Plate slip-on flanges have pressure ratings of full-plane (FF) PN2.5 (DN10 to DN2000), PN6 to PN16 (DN10 to DN600).
These technical parameters provide an important reference for the design and application of plate slip-on flanges, ensuring their applicability and safety in various industrial applications.
Technical Parameters
| Flange outer diameter | 75mm-2190mm |
| Bolt hole center circle diameter | 50mm----2130mm |
| Bolt hole diameter | 11mm-30mm |
| Number of bolt holes | 4-48 |
| Thread | M10-M27 |
| Flange thickness | 12mm-58mm |
| Pipe outer diameter | A(17. 2-2032MM) B(14-2020MM ) |
| Flange inner diameter | A(18-2036MM ) B(15-2024MM) |
| Flange theoretical weight | 0.36kg--234.6kg（DN1800） |
| Flange pressure | 0.25MPA－4.0MPA |
Related Products
Collaborative Case
GAE and Our Journey of Cooperation
The customer needs to develop a mining project and solve the flange problem in the mining project to avoid the flange or lack of flanges. It is necessary to purchase large-size stainless steel flanges.
FAQ
What certifications do your products have?
Our products comply with international standards such as ASTM, ANSI, JIS, DIN, and GB. We also hold various certifications to assure quality and reliability, including ISO 9001.
How can I get some samples?
If you need, we will offer you samples for free, but new customers are expected to pay express charge.
To which country have you supplied your products?
We have supplied to Thailand, China Taiwan, Vietnam, India, South Africa, Sudan, Peru, USA, Brazil, Trinidad and Tobago, Kuwait, Qatar, Sri Lanka, Pakistan, Romania, France, Spain, Germany, Belgium, Ukraine etc. (Figures here only include our customers in latest 5 years.)
