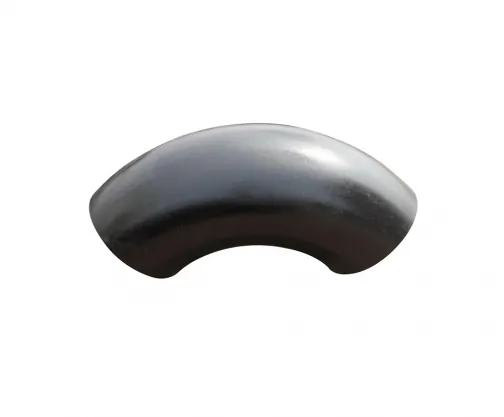

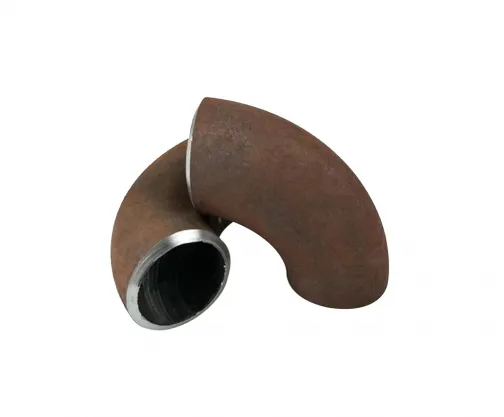

Carbon Steel Elbow

Material:‌

The materials of carbon steel elbows mainly include Q235, 20#, 35#, 45#, 16Mn. These materials are the most commonly used in carbon steel pipe fittings and are suitable for various process standards, such as national standard, American standard, Japanese standard, etc.

Certification: Special equipment type test certificate

Dimensions:

According to the angle, there are three most commonly used elbows: 45°, 90°, and 180°. In addition, according to the needs of the project, there are also other non-normal angle elbows such as 60°.

Description

Seamless elbow is a kind of pipe fitting used at the bend of the pipeline. It accounts for the largest proportion of all pipe fittings used in the pipeline system, about 80%. Usually, different forming processes are selected for elbows of different materials or wall thicknesses. Common seamless elbow forming processes used by manufacturers include hot pushing, stamping, extrusion, etc.

Carbon steel elbows are metal pipe fittings that change the direction of the carbon steel pipeline. The connection methods include threaded and welded. According to the angle, there are three most commonly used elbows: 45°, 90°, and 180°. In addition, according to the needs of the project, there are also other non-normal angle elbows such as 60°.

Carbon steel elbows can be classified into long radius elbows and short radius elbows based on their curvature radius. A long radius elbow refers to a pipe with a curvature radius equal to 1.5 times the outer diameter of the pipe, i.e. R=1.5D. A short radius elbow refers to a curvature radius equal to the outer diameter of the pipe, i.e. R=1.0D. D is the diameter of the elbow, and R is the radius of curvature. D can also be expressed in multiples If classified by pressure level, there are approximately seventeen types, which are the same as the pipe standards in the United States, including Sch5s Sch10s、Sch10、Sch20、Sch30、Sch40s、STD、Sch40、Sch60、Sch80s、XS；Sch80、Sch100、Sch120、Sch140、Sch160、XXS， The most commonly used ones are STD and XS. According to the angle of the elbow, there are 45 ° elbows, 90 ° elbows, and 180 ° elbows. The implementation standards include GB/T12459-2005, GB/T13401-2005, GB/T10752-1995, HG/T21635-1987, D-GD0219, etc.

The use of carbon steel elbows mainly includes choosing the appropriate connection method and angle, as well as choosing the appropriate material according to the project requirements. Carbon steel elbows are metal pipe fittings that change the direction of the pipeline on carbon steel pipes. The connection methods include threaded and welded, direct welding (the most commonly used method), flange connection, hot melt connection, electric fusion connection, threaded connection and socket connection. According to the angle, there are three most commonly used angle elbows: 45°, 90° and 180°. In addition, other abnormal angle elbows such as 60° are also included according to the needs of the project. The materials of the elbows include cast iron, stainless steel, alloy steel, forgeable cast iron, carbon steel, non-ferrous metals and plastics. Among them, carbon steel elbows are widely used in various industrial and civil fields due to their excellent mechanical properties and cost-effectiveness.

When using carbon steel elbows, you should also pay attention to their classification and standards. For example, carbon steel stamping elbows can be divided into open-hearth steel, converter steel and electric furnace steel according to the smelting method, boiling steel, killed steel, semi-killed steel and special killed steel according to the deoxidation method, low carbon steel, medium carbon steel and high carbon steel according to the carbon content, and ordinary carbon steel, high-quality carbon steel and high-quality steel according to the phosphorus and sulfur content. The selection of these classifications and standards directly affects the performance and service life of the elbow.

In addition, for carbon steel seamless elbows, the raw material is seamless steel pipe, and the production process includes heating, perforation, rolling, tube removal, sizing (or reducing), cooling, straightening, hydrostatic test (or flaw detection) and other steps to ensure the quality and performance of the elbow. schxx is the wall thickness grade, 90e(s) indicates a short radius 90-degree carbon steel elbow, 90e(l) indicates a long radius 90-degree elbow, etc. These identifiers help users choose the appropriate elbow specifications according to specific needs.

In summary, the correct selection and use of carbon steel elbows requires consideration of connection methods, angles, materials, and compliance with relevant classifications and standards to ensure the safe and efficient operation of the pipeline system.
