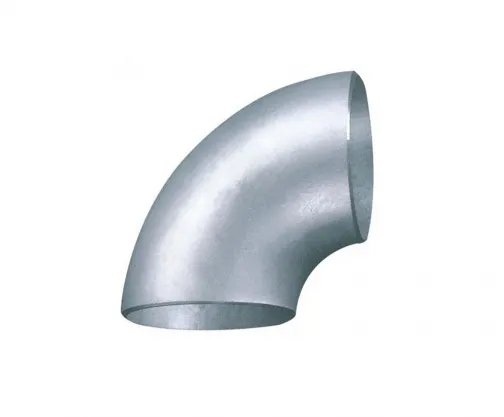

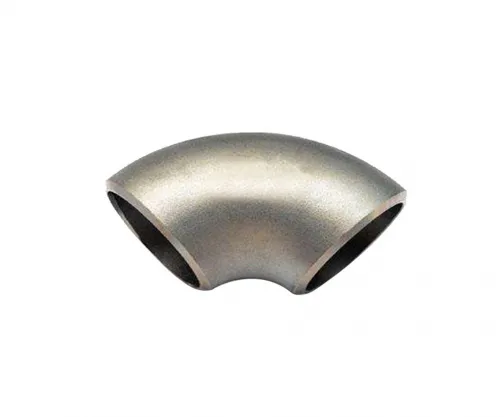

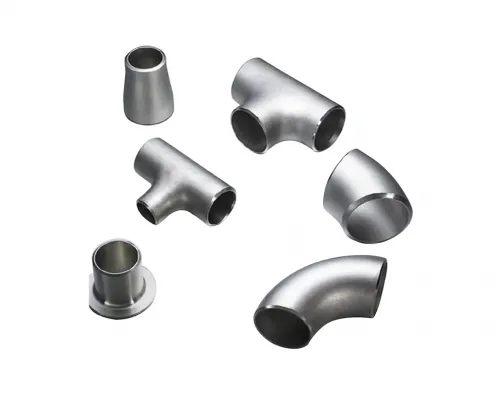

Alloy Elbow

Dimensions:

The size of the alloy elbow is determined according to the nominal diameter. The specific dimensions include the long radius and short radius 90°, 45°, and 180° elbows.

Description:

Alloy elbow is a pipe fitting made of high-strength alloy material, mainly used for connecting pipe bends to achieve 90° or other angle bends between two pipes with the same nominal diameter. This elbow is particularly suitable for working in high temperature and high pressure environments due to its excellent corrosion resistance and high temperature resistance.

Alloy elbows are made of various materials, including but not limited to manganese steel, nickel steel, martensitic alloys, etc. These materials give alloy elbows specific applications in different environments. For example, alloy elbows made of manganese steel are usually used in pipelines with severe wear and tear, such as concrete conveying pipelines and mud conveying pipelines, because of their excellent performance in withstanding impact, extrusion, and material wear. Alloy elbows made of nickel steel are usually used in normal temperature conveying pipelines of high-concentration oxidizing acids (such as nitric acid and sulfuric acid). In addition, martensitic alloy elbows have high high-temperature strength, oxidation resistance, and water vapor corrosion resistance below 650°C, so they are often used in high-temperature water vapor conveying pipelines, water gas pipelines and other environments. These characteristics make alloy elbows an indispensable part of industrial piping systems, especially in application scenarios that need to withstand extreme conditions, their importance is more prominent.

The specifications of alloy elbows include 90 degrees, 45 degrees, 180 degrees, 1D, 1.5D, 2D, 2.5D, 3D, etc. These specifications cover the transition from smaller angles to larger angles, meeting the connection requirements of different pipeline systems. Due to its excellent performance, alloy elbows are often used in high-temperature steam pipelines, water-gas pipelines and other occasions. The implementation standards include GB/T12459-2005, GB/T13401, and GB/T10752-1999, which ensure the quality and performance of alloy elbows and enable them to adapt to the use requirements in various industrial environments.

Alloy elbows are a type of pipe fittings widely used in various industrial piping systems. Their instructions mainly include material selection, connection methods, production processes, classifications, and application scopes.

1. Material selection: The materials of alloy elbows include cast iron, stainless steel, alloy steel, forgeable cast iron, carbon steel, non-ferrous metals, and plastics. The selection of these materials depends on the specific requirements and working conditions of the piping system, such as corrosion resistance, high temperature resistance, and pressure resistance.

2. Connection methods: Alloy elbows have various connection methods, including direct welding (the most commonly used method), flange connection, hot melt connection, electric fusion connection, threaded connection, and socket connection. The selection of these connection methods depends on the design requirements of the piping system and the convenience of installation and maintenance.

3. Production process: The production process of alloy elbows includes welding elbows, stamping elbows, push elbows, casting elbows, butt welding elbows, etc. Different production processes are suitable for different usage scenarios. For example, welding elbows are suitable for occasions that require higher strength and sealing, while stamping elbows are suitable for mass production.

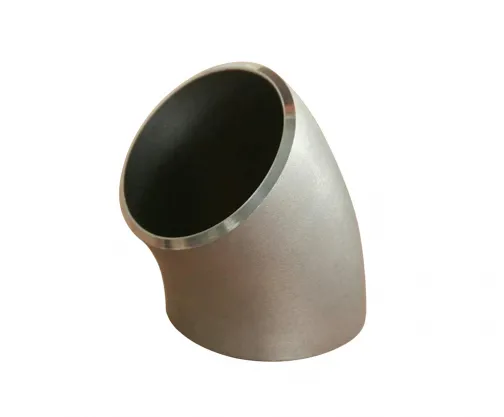

4. Classification: Alloy elbows can be classified in many ways, such as angle (such as 45°, 90°, 180°), radius of curvature (long radius and short radius), pressure level, etc. For example, 45° and 90° elbows are suitable for occasions where the direction of the pipeline needs to be changed, while 180° elbows are used in occasions where the direction of the pipeline needs to be completely changed.

5. Application scope: Alloy elbows are widely used in pipeline systems in various fields such as petrochemicals, electricity, natural gas, and water supply. They can withstand high pressure and high temperature, have good sealing and corrosion resistance, and are an indispensable part of industrial pipeline systems.

In summary, the instructions for use of alloy elbows cover many aspects such as material selection, connection method, production process, classification, and application scope, ensuring its wide application and efficient operation in various industrial pipeline systems.

The use parameters of alloy elbows involve many aspects, including material, implementation standards, pressure level, radius of curvature, etc. The following is a detailed description of the parameters:

1. Material: Alloy elbows are made of various materials, including bronze, stainless steel, manganese steel, high manganese steel, nickel steel and martensitic alloys. For example, ordinary bronze alloy elbows are more common in general tap water pipes, while stainless steel elbows are used in many tap water pipes with the improvement of living standards. Manganese steel alloy elbows are suitable for pipes with severe wear and consumption, such as concrete conveying pipes and mud conveying pipes. High manganese steel alloy elbows are used in pipes with intense fluid flow and strong impact. Nickel steel alloy elbows are usually used in normal temperature conveying pipes with high concentration of oxidizing acids (such as nitric acid and sulfuric acid), while martensitic alloy elbows have high high temperature strength, oxidation resistance and water vapor corrosion resistance below 650℃, and are often used in high temperature water vapor conveying pipes and water gas pipes.

2. Implementation standards: The implementation standards of alloy elbows include GB/T12459-2005, GB/T13401, GB/T10752-1999, etc. These standards specify the requirements for the size, material, performance, etc. of the elbows.

3. Pressure level: According to the pressure level classification, there are about seventeen pressure levels for welded elbows, including Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch60, Sch80s, XS, Sch80, Sch100, Sch120, Sch140, Sch160, XXS, of which STD and XS are the most commonly used.

4. Curvature radius: According to the curvature radius classification, welded elbows can be divided into long radius elbows and short radius elbows. Long radius elbows refer to elbows with a radius of curvature equal to 1.5 times the outer diameter of the pipe (R=1.5D), while short radius elbows have a radius of curvature equal to the outer diameter of the pipe (R=D). The most commonly used elbow is 1.5D. If the contract does not specify whether it is 1D or 1.5D, then the 1.5D elbow should be optimized.

In summary, the use parameters of alloy elbows include material selection, implementation standard compliance, pressure level classification, and curvature radius selection. The selection of these parameters depends on the specific application scenario and requirements.
